HIVE Mini Electric Sauna Heater
- Stone-emphasizing design
- Exceptionally mild and long-lasting steam
- Control with mobile app
Easy to use
Soft steam
Long-lasting relaxation
Safety & control
Made in Estonia

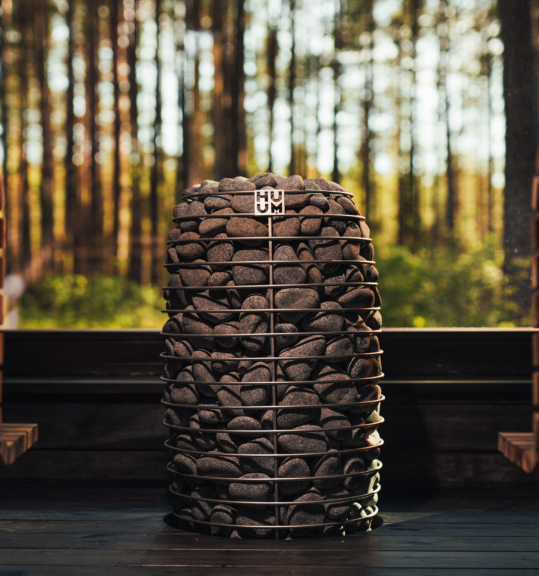

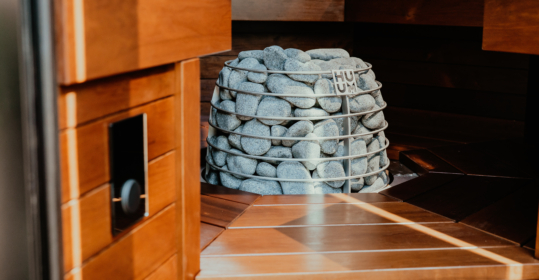

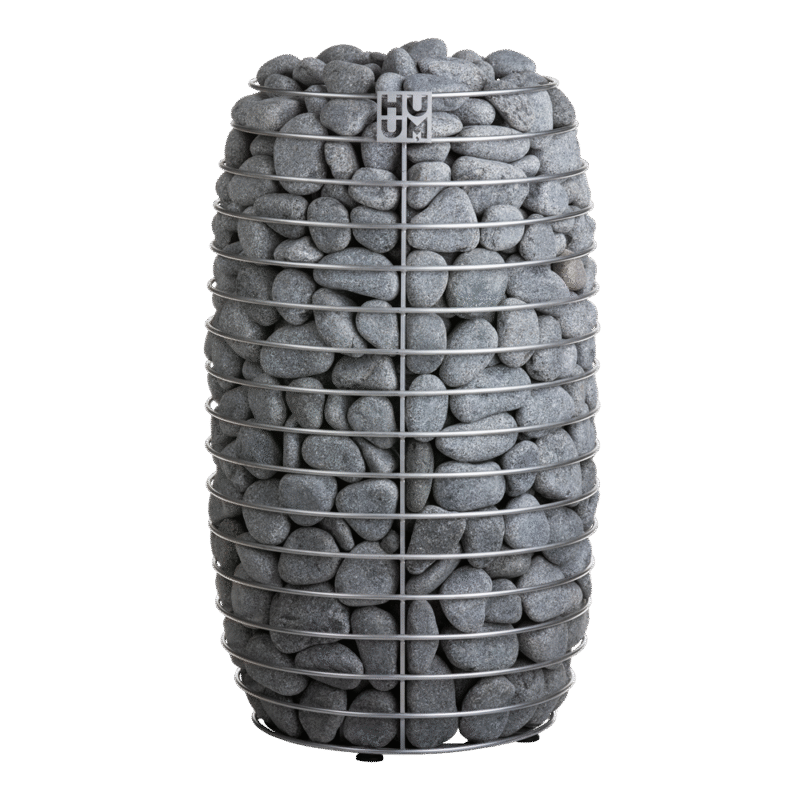

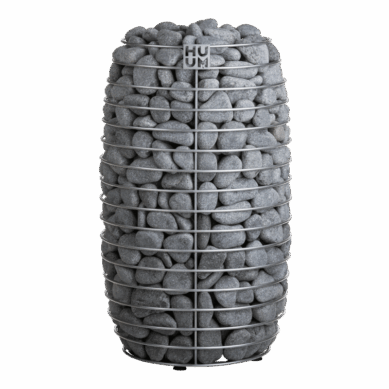

HIVE Mini electric sauna heater is a smaller version of the popular HIVE sauna heater, perfect for slightly smaller saunas.

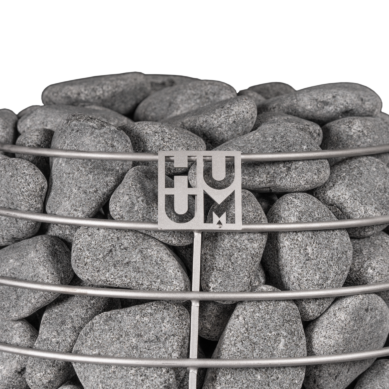

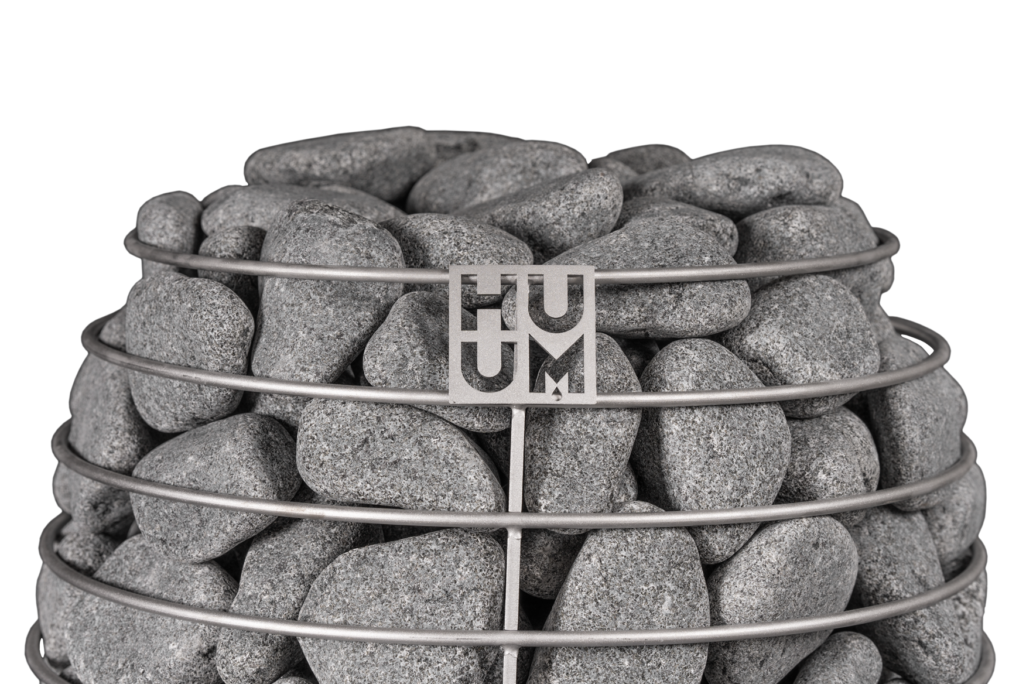

With its round and majestic design, this sauna heater can still hold up to 150 kg / 330 lb of sauna stones, ensuring long-lasting and mild steam for sauna-goers.

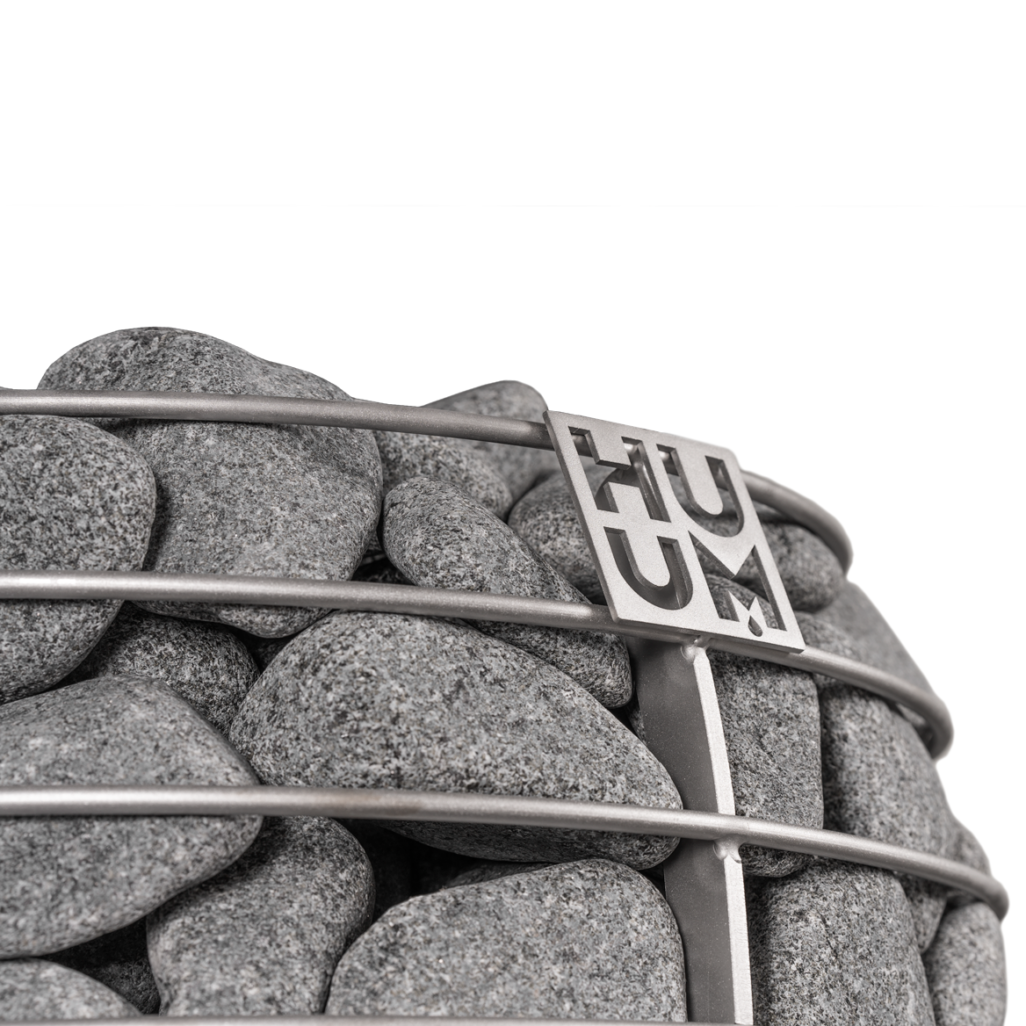

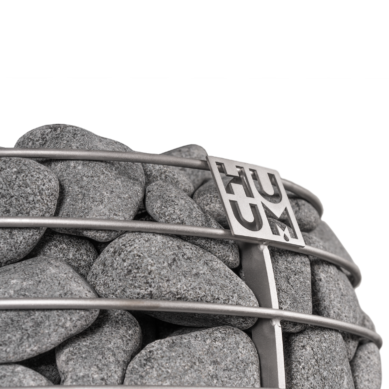

The details of the heater are made of durable stainless steel. Its compact size doesn’t compromise on performance, making it a great option for those who want a high-quality sauna experience without needing a larger heater.
Starting from 2025, the air tunnel of HIVE is included as a standard component with all HIVE Mini models.
We strongly recommend including a safety railing in your sauna—either a custom design from your builder or our HUUM safety railing—for enhanced safety and comfort.
| Model | HIVE Mini 6 | HIVE Mini 9 | HIVE Mini 11 |
|---|---|---|---|
| Connection | |||
| Fuse | 30 A | 50 A | 50 A |
| Supply voltage | 240 V 2~ | 240 V 2~ | 240 V 2~ |
| Power cable | 10 AWG | 8 AWG | 6 AWG |
| Heater | |||
| Power rating (kW) | 6 | 9 | 10.6 |
| Steam room min | 5 | 8 | 10 |
| Steam room max | 9 | 13 | 16 |
| Holding capacity of sauna rocks (kg) | 150 | 150 | 150 |
| Weight | 16 | 18 | 18 |
| Height | 750 | 750 | 750 |
| Diameter | 460 | 460 | 460 |

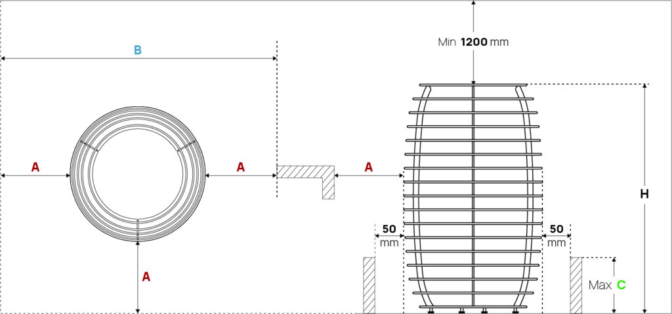

| Safety Distances | |||
| A | 60 | 90 | 110 |
| B | 580 | 640 | 680 |
- electric sauna heater
- adjustable legs
- air tunnel (included as a standard component in all HIVE Mini models from 2025)
- UKU sauna control system
- 150 kg / 330 lb of sauna stones with the diameter of 5–10 cm / 2-4 in
- Heat-resistant power cable
- You can choose a control panel that suits the interior design of your sauna: GLASS, CLASSIC, or WOOD
-
- The UKU control system set already includes a black plastic control panel CLASSIC Black.

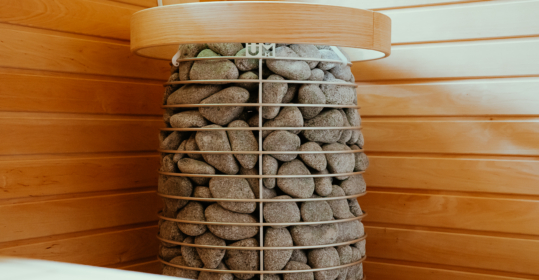

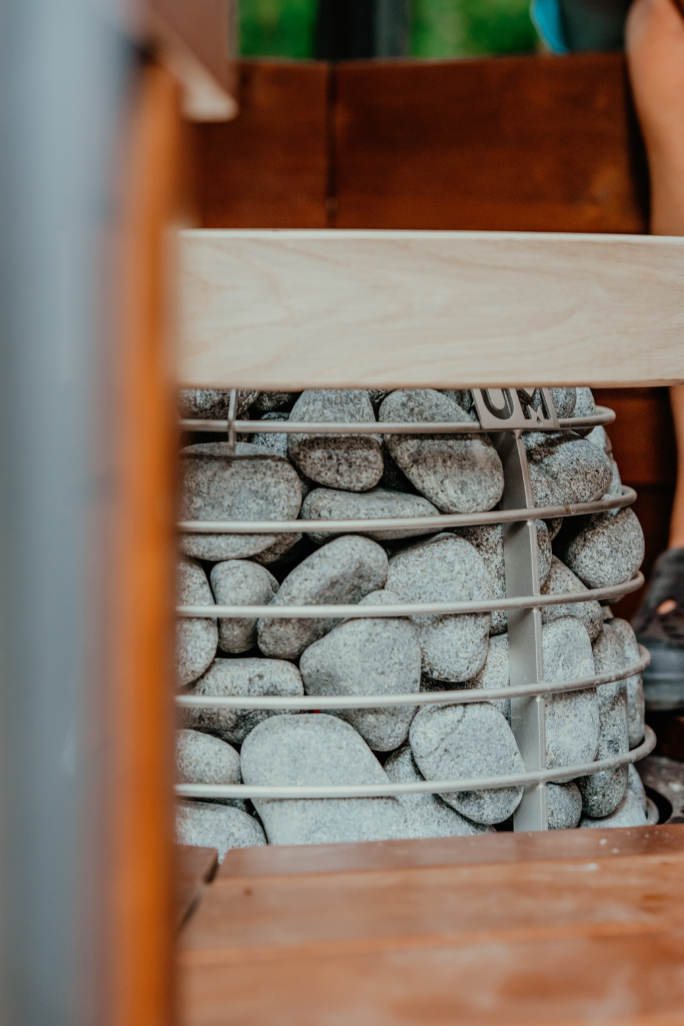

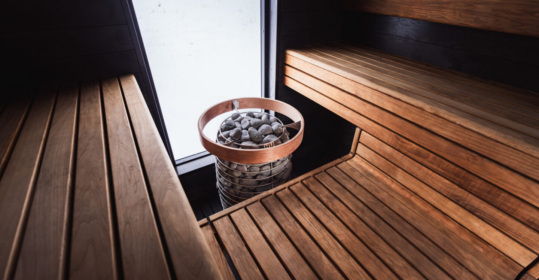

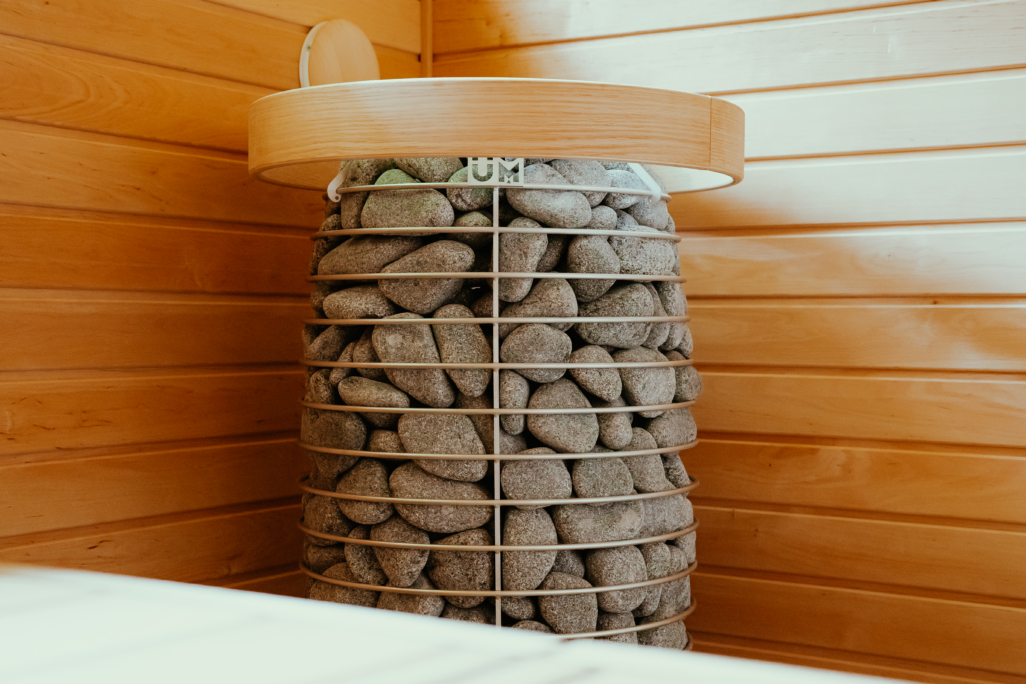

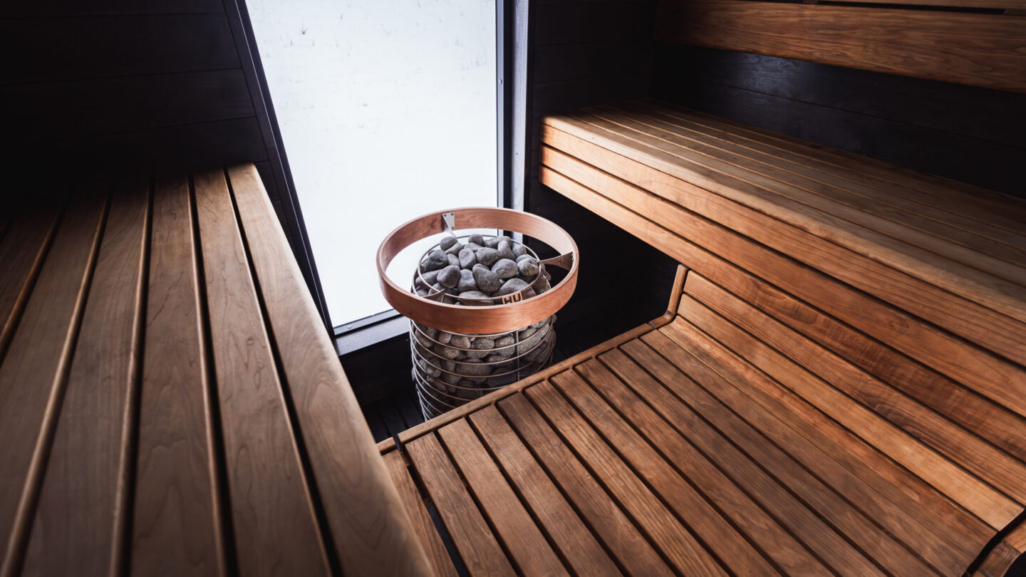

- The safety railing with wooden arches complements the design and adds safety.

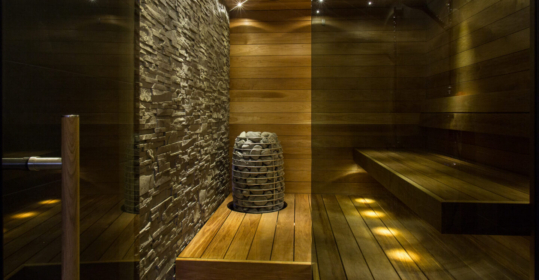

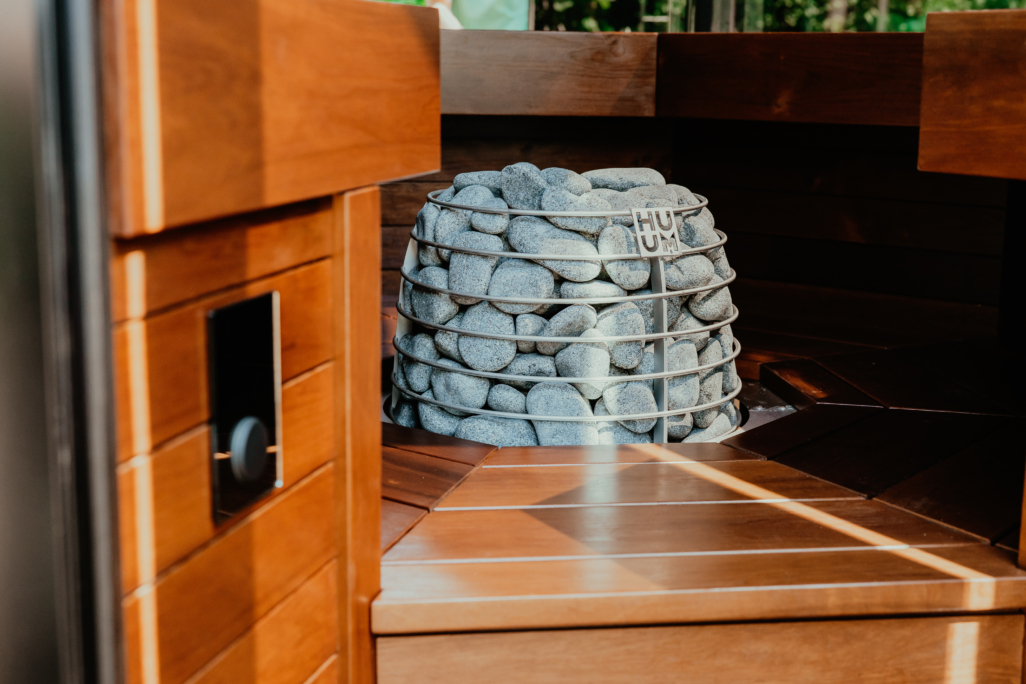

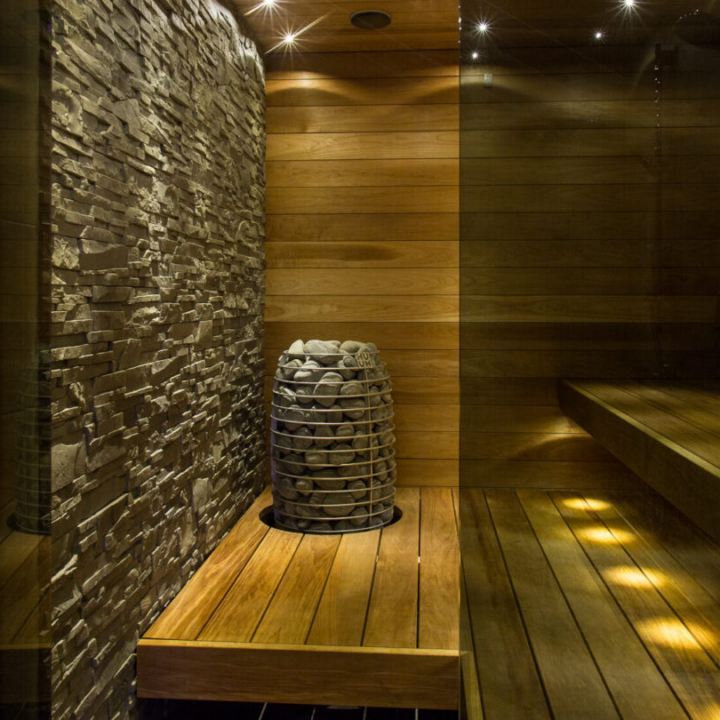

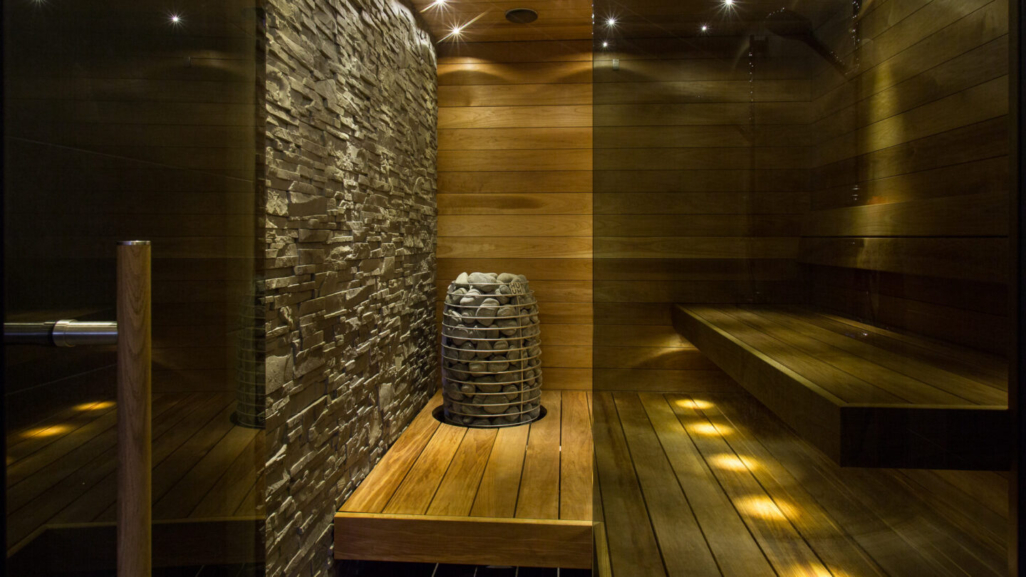

- As a design option, HIVE Mini electric sauna heater can be embedded into the sauna bench.
-
- When the heater is embedded, at least 350 mm of the heater should protrude from the sauna bench surface.
- Use the embedding flange of the HIVE electric sauna heater to cover the cut rims of the opening.
HUUM HIVE Mini User manual US
2.15 MB
HUUM HIVE Mini DWG
0.13 MB
HUUM HIVE Mini OBJ
2.61 MB
HUUM HIVE Mini SKP
82.24 MB
HUUM HIVE Mini IFC
16.03 MB
HUUM HIVE Mini 3DS
12.97 MB
HUUM HIVE Mini With Safety Railing SKP
91.45 MB
HUUM HIVE Mini With Safety Railing IFC
17.81 MB
HUUM HIVE Mini With Safety Railing 3DS
14.81 MB
HIVE Mini electric sauna heater is a smaller version of the popular HIVE sauna heater, perfect for slightly smaller saunas.
With its round and majestic design, this sauna heater can still hold up to 150 kg / 330 lb of sauna stones, ensuring long-lasting and mild steam for sauna-goers.
The details of the heater are made of durable stainless steel. Its compact size doesn’t compromise on performance, making it a great option for those who want a high-quality sauna experience without needing a larger heater.
Starting from 2025, the air tunnel of HIVE is included as a standard component with all HIVE Mini models.
We strongly recommend including a safety railing in your sauna—either a custom design from your builder or our HUUM safety railing—for enhanced safety and comfort.
| Model | HIVE Mini 6 | HIVE Mini 9 | HIVE Mini 11 |
|---|---|---|---|
| Connection | |||
| Fuse | 30 A | 50 A | 50 A |
| Supply voltage | 240 V 2~ | 240 V 2~ | 240 V 2~ |
| Power cable | 10 AWG | 8 AWG | 6 AWG |
| Heater | |||
| Power rating (kW) | 6 | 9 | 10.6 |
| Steam room min | 5 | 8 | 10 |
| Steam room max | 9 | 13 | 16 |
| Holding capacity of sauna rocks (kg) | 150 | 150 | 150 |
| Weight | 16 | 18 | 18 |
| Height | 750 | 750 | 750 |
| Diameter | 460 | 460 | 460 |
| Safety Distances | |||
| A | 60 | 90 | 110 |
| B | 580 | 640 | 680 |
- electric sauna heater
- adjustable legs
- air tunnel (included as a standard component in all HIVE Mini models from 2025)
- UKU sauna control system
- 150 kg / 330 lb of sauna stones with the diameter of 5–10 cm / 2-4 in
- Heat-resistant power cable
- You can choose a control panel that suits the interior design of your sauna: GLASS, CLASSIC, or WOOD
-
- The UKU control system set already includes a black plastic control panel CLASSIC Black.
- The safety railing with wooden arches complements the design and adds safety.
- As a design option, HIVE Mini electric sauna heater can be embedded into the sauna bench.
-
- When the heater is embedded, at least 350 mm of the heater should protrude from the sauna bench surface.
- Use the embedding flange of the HIVE electric sauna heater to cover the cut rims of the opening.
HUUM HIVE Mini User manual US
2.15 MB
HUUM HIVE Mini DWG
0.13 MB
HUUM HIVE Mini OBJ
2.61 MB
HUUM HIVE Mini SKP
82.24 MB
HUUM HIVE Mini IFC
16.03 MB
HUUM HIVE Mini 3DS
12.97 MB
HUUM HIVE Mini With Safety Railing SKP
91.45 MB
HUUM HIVE Mini With Safety Railing IFC
17.81 MB
HUUM HIVE Mini With Safety Railing 3DS
14.81 MB
Accessories
Classy and smart sauna controller
HUUM sauna controller represents an intuitive and efficient solution for heating the sauna. Sauna controllers are available with different enclosures, and their menu is simple and user-friendly. HUUM controllers heat the sauna through the smart UKU sauna control system. You can choose a suitable model, depending on whether you prefer to heat the sauna on site or via HUUM mobile app. UKU sauna control system ensures simplicity and safety of sauna heating, and it is compatible with electric sauna heaters of various manufacturers.
Nature-inspired shapes

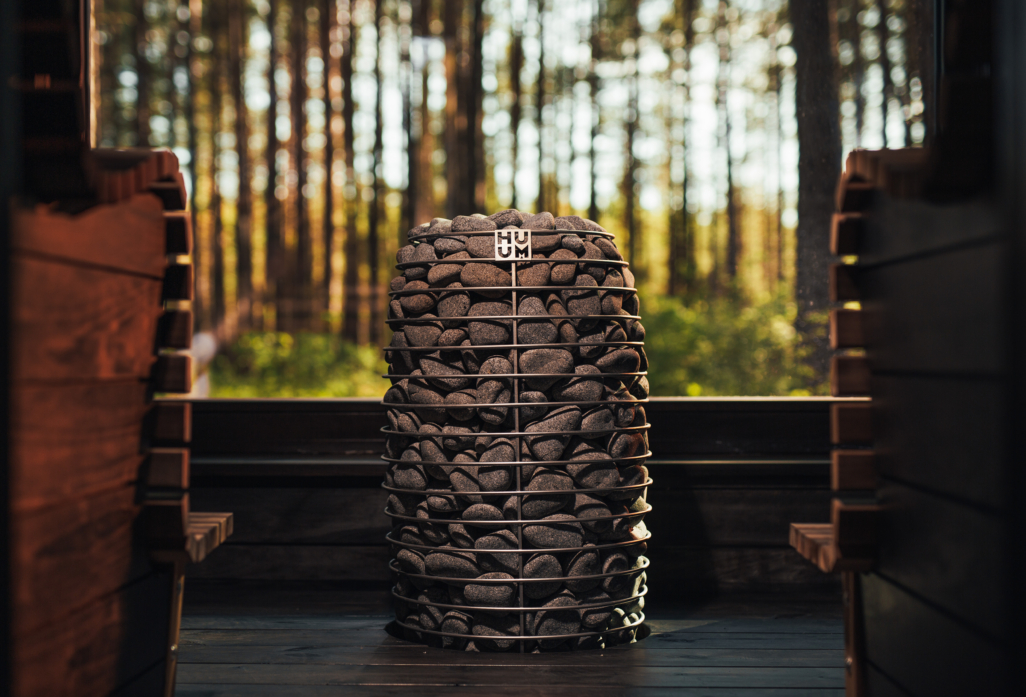

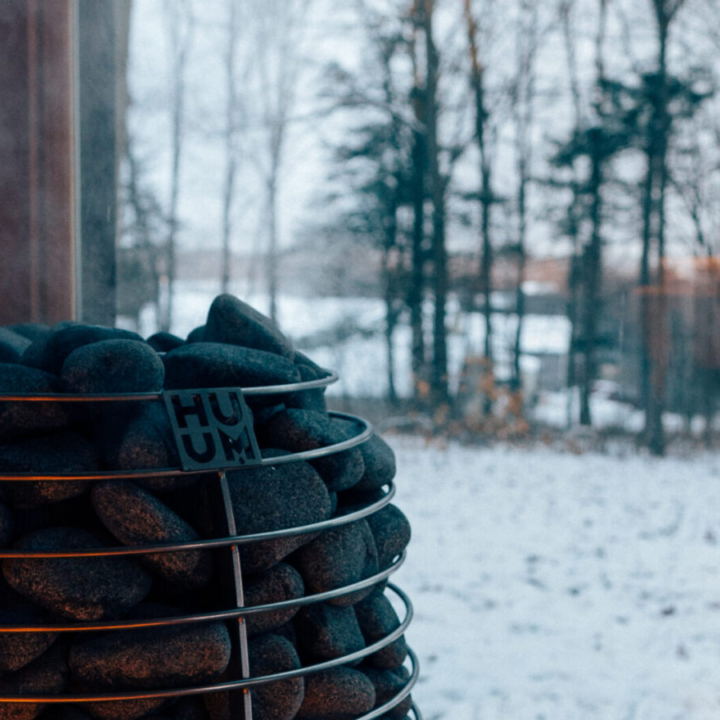

The round form of the HIVE sauna heater imitates a wild beehive. Stainless steel arcs surround the sauna stones with pure elegance and accentuate their natural beauty.
HIVE sauna heater represents the copious warmth of a Nordic sauna that unites people. It is the heart and focal point of the sauna. It’s pure pleasure to share stories and an authentic sauna experience beside it!

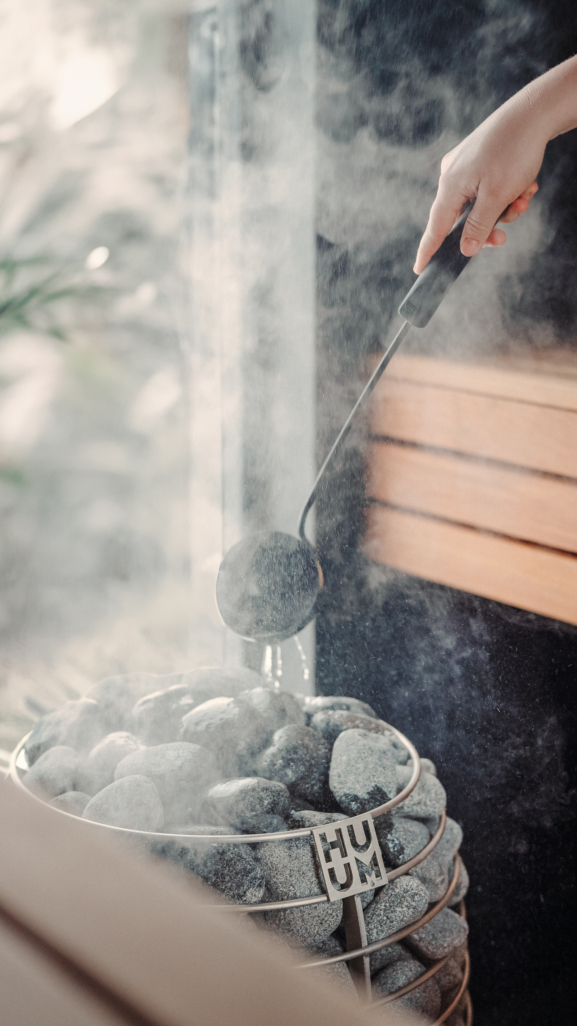

Soft steam that resembles the traditional sauna
The amount of metal used in HUUM sauna heaters is very small – this ensures that majority of the heat derives from the stones, and not from the metal. This maximizes the proportion of beneficial negative ions in the air, which is also high in the traditional wood-heated sauna.
This and the exceptionally large quantity of sauna stones are the secret ingredients of the curative, gentle and long-lasting steam of our sauna heaters.
